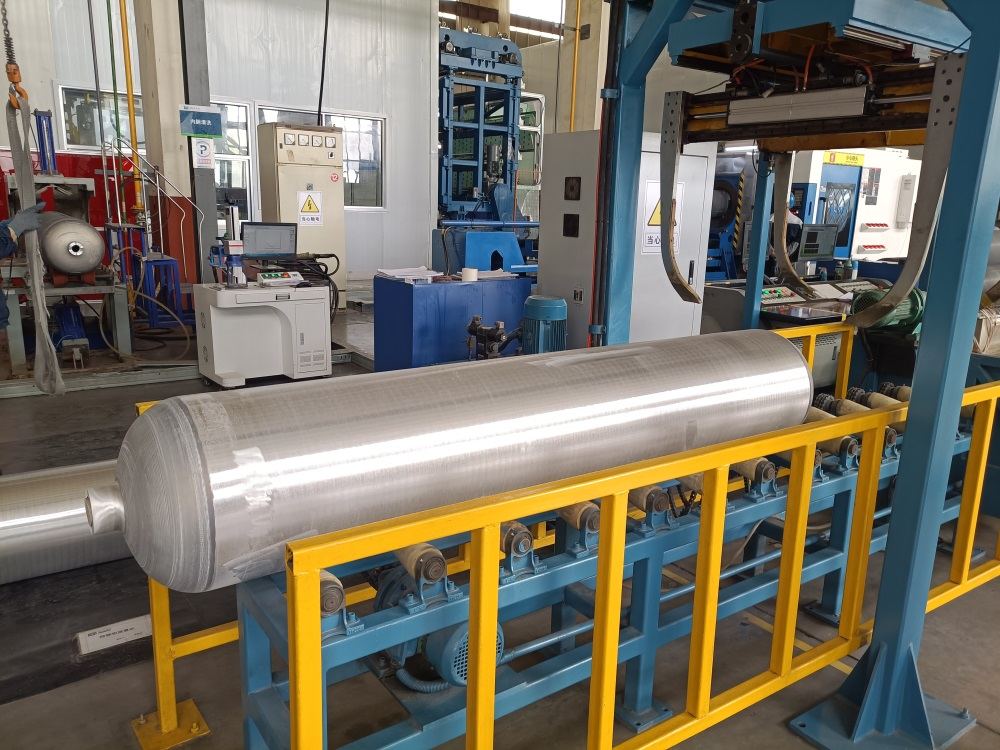

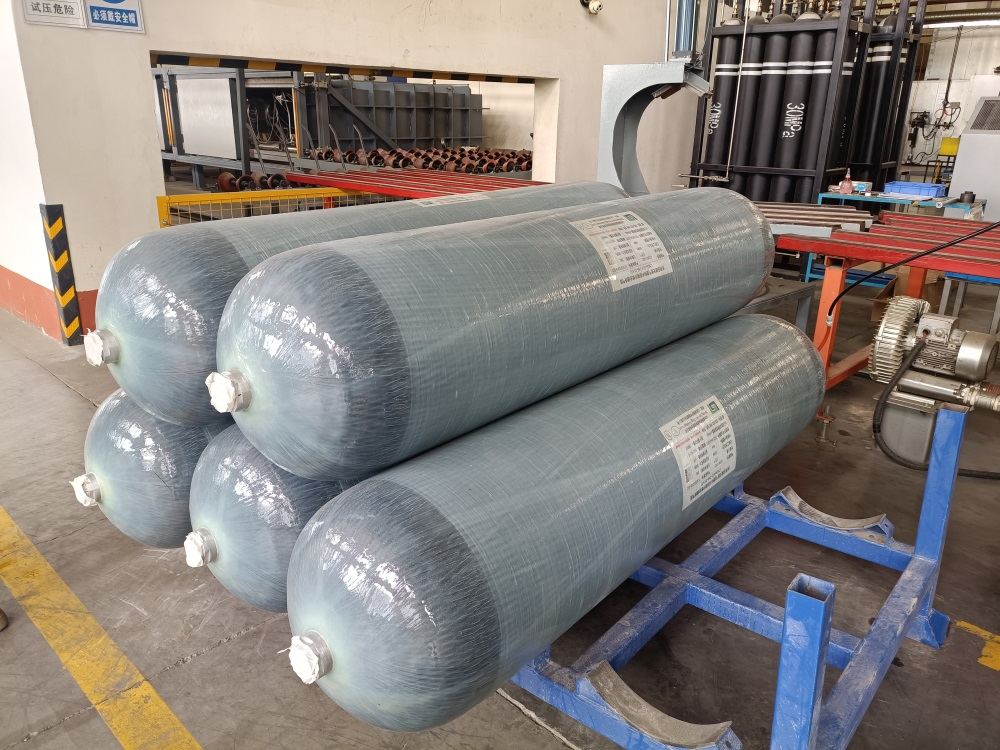

Vehicle Storage Tank Truck Gas Cylinders High Pressure Hydrogen Cylinder

Auyan is committed to the application of natural gas and hydrogen-related clean energy. Business scope covers the manufacturing of low-temperature equipment and intelligent gas supply for new energy vehicles.

INTRODUCTION

The hydrogen fuel cell is a device that directly converts the chemical energy of hydrogen into electrical energy. It has the advantages of high efficiency, environmental protection, lightweight and low noise, and has become an important direction for the development of new energy vehicles. High-pressure container hydrogen storage has become the main onboard hydrogen storage method for hydrogen fuel cell vehicles due to its simple structure, high hydrogen storage density, and fast filling and discharge speed. On-board hydrogen cylinders are the main hydrogen carrying equipment on hydrogen fuel cell vehicles.

Vehicle Storage Tank Truck Gas Cylinders High Pressure Hydrogen Cylinder Vehicle Storage Tank Truck Gas Cylinders High Pressure Hydrogen Cylinder
TECHNICAL DATA
design pressure1.2MPa
test pressure 2.4MPa
Nominal volume1000L
Effective volume900L
set temperature-253℃-80℃ Liner material 316L
Insulation typeHigh vacuum variable density multi-layer insulation + multi-layer cold screen outer bladder material 304
storage mediumLiquid hydrogen (LH2)
static evaporation rate≤1%
Overall leak rate≤1.0*10-8Pa.m^3/s
Leakage rate≤1.0*10-9Pa.m^3/s
degree of vacuum≤1.0-3pa
empty weight650kg
full weight713kg
filling weight63kg
pipelinevacuum line


APPLICATION

Auyan is committed to the application of natural gas and hydrogen-related clean energy. Business scope covers the manufacturing of low-temperature equipment and intelligent gas supply for new energy vehicles.
