Auyan New Energy Welded Insulated Liquid Cylinder Vehicle CNG Cylinder

Vehicle CNG cylinder made in auyan has Long life, excellent anti-fatigue performance, the fatigue life can reach more than 45,000 times.

Send Inquiry
INTRODUCTION

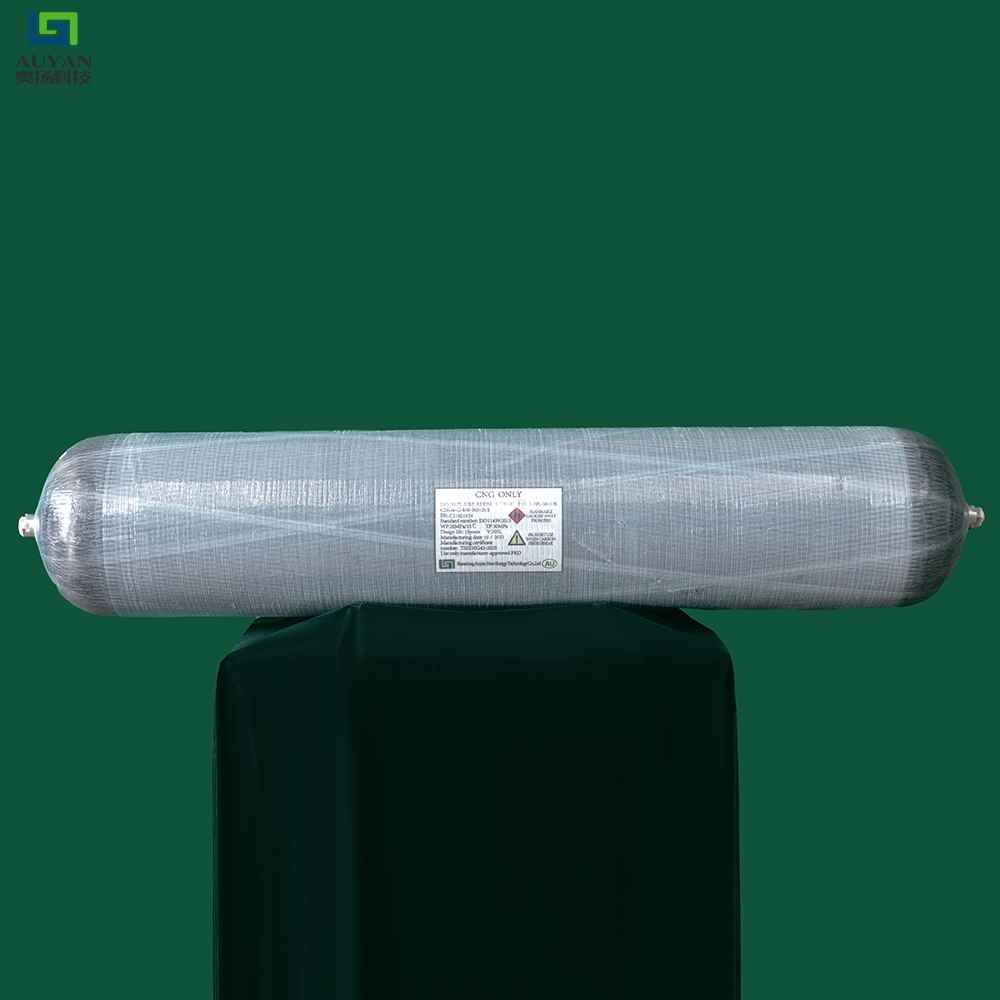

Auyan CNG vehicle-mounted gas cylinder uses finite element stress analysis technology to optimize the winding internal pressure design, and cooperate with its own patented winding tooling to realize continuous, controllable and variable pressure fiber winding.

Core competitiveness: 42% weight reduction, substantial cost reduction and longer service life.

Auyan New Energy Welded Insulated Liquid Cylinder Vehicle CNG Cylinder Auyan New Energy Welded Insulated Liquid Cylinder Vehicle CNG Cylinder
TECHNICAL DATA
No.NameModelHigh Pressure/MpaCylinder outer diameter/mmLength/mmWater volume/L
IV Type Cylinder235L Gas CylinderCNG4-C-450-235-20S204501880235
265L Gas CylinderCNG4-C-450-265-20S204502070265
305L Gas CylinderCNG4-C-450-305-20S204502400305
115L Gas CylinderCHG4-C-410-115-35S35410915115
55L Gas CylinderCNG4-C-327-55-20T2032799055
66L Gas CylinderCNG4-C-356-66-20T2035696566
66L Gas CylinderCNG4-C-356-66-70T7041096566

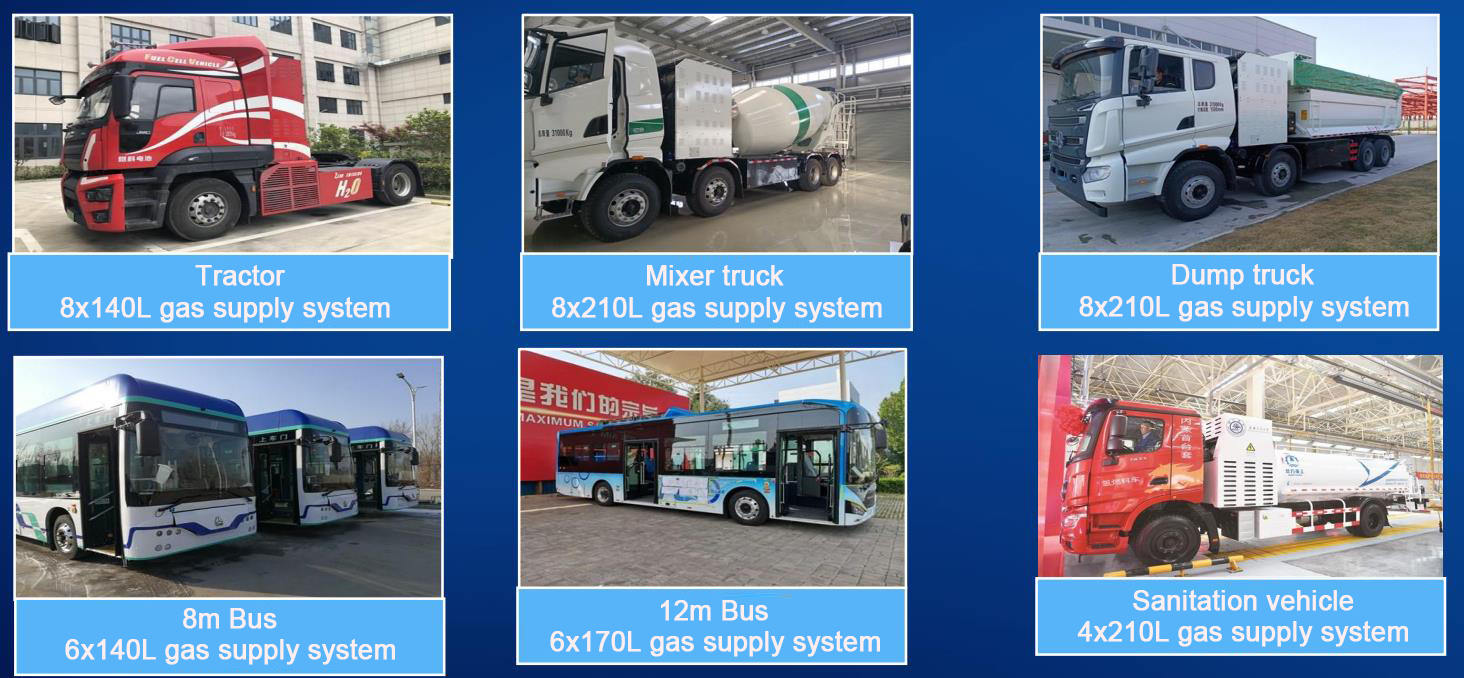

APPLICATION
